Stramatel “452 MS 7100” Scoreboard
Non-returnable
MUR0.00
Out of stock
Tags:
Stramatel “452 MS 7100” Scoreboard
- With programmable team names
- 14 programmable sports
- Impact-resistant, anti-glare polycarbonate front
- Reliable LED digital display
- Available in 2 versions: cable- or radio-controlled
- With programmable team names
- 14 programmable sports
- Impact-resistant, anti-glare polycarbonate front
- Reliable LED digital display
- Available in 2 versions: cable- or radio-controlled
Available For Pre - Order
Product Details

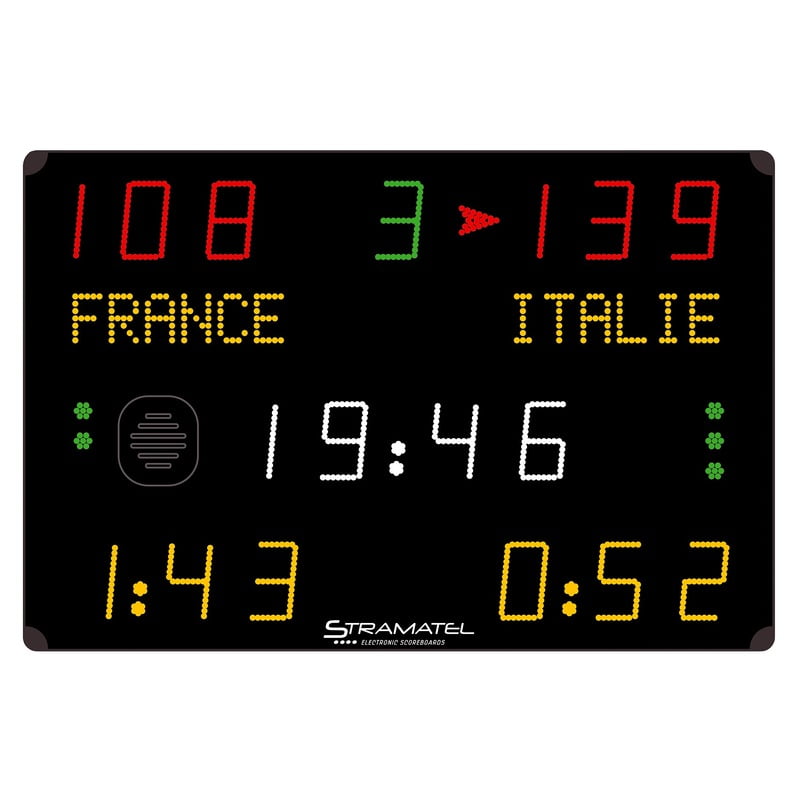

Stramatel “452 MS 7100” scoreboard
A multisport scoreboard with 17-digit display and programmable team names suitable for use in 14 different sports – with special handball mode.
Can be set to 1 of 14 fully programmed sports using the control panel: badminton, basketball, boxing, ice hockey, indoor football / futsal, indoor handball, indoor hockey, in-line hockey, roller hockey, tennis, table tennis, floorball, volleyball as well as a free mode and timing/training mode.
Features the following functions:
Display functions:
More information:
Includes:
Take the chance to make competitions in your sports hall visible to all! The Stramatel “452 MS 7100” scoreboard is supplied ready for use and can be simply assembled by yourself or by a specialist.
A multisport scoreboard with 17-digit display and programmable team names suitable for use in 14 different sports – with special handball mode.
- WxHxD: 160x100x9 cm
- Digit height: 16 cm and 15 cm
- Visible from 60 m
- Radio-controlled (range approx. 40 m)
- Buzzer: 116 dBa in a radius of 1 m
- For indoor use
- Weight: 24 kg
Can be set to 1 of 14 fully programmed sports using the control panel: badminton, basketball, boxing, ice hockey, indoor football / futsal, indoor handball, indoor hockey, in-line hockey, roller hockey, tennis, table tennis, floorball, volleyball as well as a free mode and timing/training mode.
Features the following functions:
- Display for home and away scores
- Display for game period, time-outs (BB, VB) and who is serving (tennis, VB etc.)
- Display for penalty times (HB) and sets (VB)
- Game clock, counting up or down
- Freely adjustable with 4-digit minute and second display
- 24-hour clock, game clock can be switched to normal time in hours and minutes
- Automatic and manual buzzer
- Display for ball possession (BB)
- Programmable team name, 2x 9 letters, 9 cm
Display functions:
- Score: 2x 3 digits, red (15 cm)
- Game period: 1 digit, green (15 cm)
- Ball possession: 2 arrows, red
- Playing time / break time: 4 digits, white (15 cm) + 2 flashing lights
- Team names: 20 alphanumerical characters, yellow (9 cm)
- LED script: 1,000 characters
- Team foul / penalty timer: 2x 3 digits, yellow (15 cm)
- Time-outs or penalty times: 2x 3 green lights
- Time: outside of game use
More information:

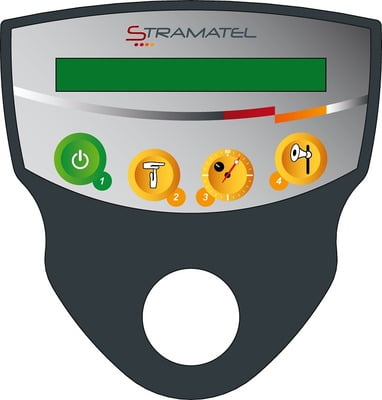

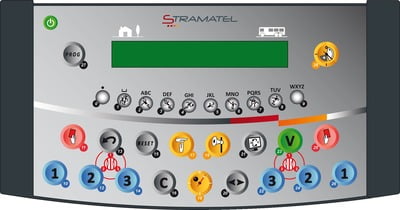

- Control panel and scoreboard linked via integrated radio control
- 5-language user interface (German, English, French, Spanish or Dutch)
- Built-in clock
- Memory function
- Reliable LED digital display
- Illuminated characters with ‘double safety’ LED segments
- Impact-resistant, anti-glare polycarbonate front (DIN 18032-3)
- 3-year guarantee on parts and working time for the entire device
- LED display: 10-year guarantee on all parts
- Current: 230 V / 60 Hz
Includes:
- 1 scoreboard
- 1 control panel, 1 timer panel
- 1 PC keyboard
- 1 carry case for storing the control panel
- 1 power cable
- Cable + sockets for cable-operated version
- Installation and user instructions
Take the chance to make competitions in your sports hall visible to all! The Stramatel “452 MS 7100” scoreboard is supplied ready for use and can be simply assembled by yourself or by a specialist.
Cable- or radio-controlled:
Radio-controlled scoreboards are easier to install and give the user greater freedom of movement. The new radio-controlled system from Stramatel works at a standardised and correct radio frequency to guarantee a high level of reliability and functionality. All models are available as cable-controlled. This option is recommended in some cases, particularly when the level of play is high. Regardless of transmission type, several scoreboards can work in one sports hall at the same time.
Installation:
The scoreboards are quick and easy to install. Radio-controlled scoreboards only require a mains supply (230 V). Cable-controlled models require a mains supply and the installation of a control cable, which is included.
The Stramatel "Multisport" Android app – easy to use
Stramatel has developed an app for your scoreboard, giving you convenient access to the main functions of your radio- or cable-controlled scoreboard via your smartphone or tablet. You can also share all of your match stats on social media (Facebook, Twitter) during the game or after the final whistle. The control panel is user-friendly, intuitive and fun. Simply download the free "Stramatel Multisport" app from Google Play.
Radio-controlled scoreboards are easier to install and give the user greater freedom of movement. The new radio-controlled system from Stramatel works at a standardised and correct radio frequency to guarantee a high level of reliability and functionality. All models are available as cable-controlled. This option is recommended in some cases, particularly when the level of play is high. Regardless of transmission type, several scoreboards can work in one sports hall at the same time.
Installation:
The scoreboards are quick and easy to install. Radio-controlled scoreboards only require a mains supply (230 V). Cable-controlled models require a mains supply and the installation of a control cable, which is included.
The Stramatel "Multisport" Android app – easy to use
Stramatel has developed an app for your scoreboard, giving you convenient access to the main functions of your radio- or cable-controlled scoreboard via your smartphone or tablet. You can also share all of your match stats on social media (Facebook, Twitter) during the game or after the final whistle. The control panel is user-friendly, intuitive and fun. Simply download the free "Stramatel Multisport" app from Google Play.
