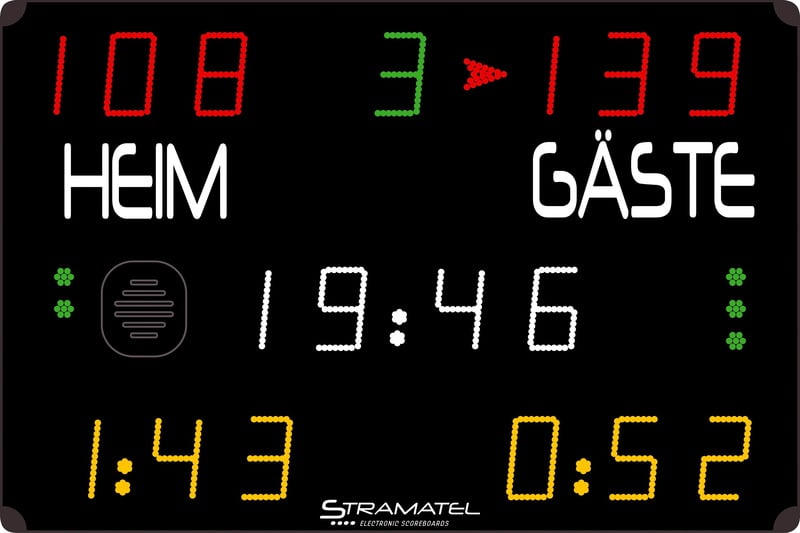

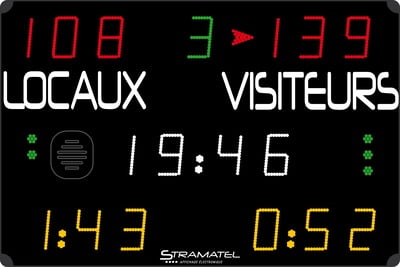

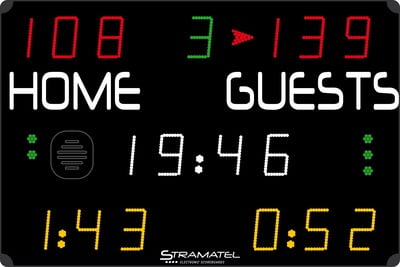

Stramatel multi-sport scoreboard with 17 digits for 14 programmable sports – with special handball mode.

• Dimensions (W×H×D): 190×120×9 cm
• Height of digits: 25 and 20 cm
• Visibility: 110 m
• Radio-operated, signal range approx. 40 m
• Buzzer with 116 dBa up to 1 m
• Built-in clock
• For indoor use
• Weight: 35 kg

14 fully programmed sports can be selected on the control panel: badminton, basketball, boxing, ice hockey, indoor football / futsal, indoor handball, indoor hockey, in-line hockey, roller hockey, tennis, table tennis, floorball and volleyball. There is also a free mode and a timer.

The model offers the following functions:

• Displays home and away team scores
• Displays times of period, breaks (basketball, handball, volleyball) and serves (tennis, volleyball, etc.)
• Displays penalty times (handball) and sets (volleyball)
• Clock showing playing time, can run forwards or count down
• Freely adjustable with 4-figure minute and second display
• 24-hour clock; clock showing playing time can be switched to show real time in hours and minutes
• Automatic and manual buzzer
• Displays ball possession (basketball)

Display function:

• Score: 2x3 figures, red (25 cm)
• Period: 1 figure, green (20 cm)
• Ball possession: 2 arrows, red
• Playing time / break time: 4 figures, white (25 cm) + 2 flashing lights
• Team fouls / sets / penalty times: 2x3 figures, yellow (20 cm)
• Number of time-outs/fouls: 2x3 green lights
• Clock: outside of game use

Further information:

• Link between control panel and scoreboard via integrated radio control
• Program control in 5 languages (German, English, French, Spanish or Dutch)
• Built-in clock
• Saves information
• Reliable LED digital display
• Light-up digits with "extra secure" diode segments
• Ball-proof, anti-glare, polycarbonate front DIN 18032-3
• 3-year guarantee on parts and operating life for the whole product
• Guarantee on diode display: 10 years on all parts
• Supply: 230 V / 60 Hz

Included:

• 1 scoreboard

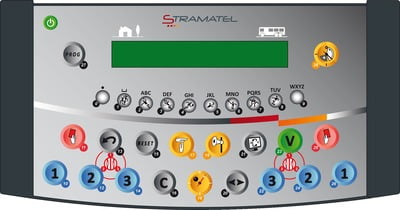

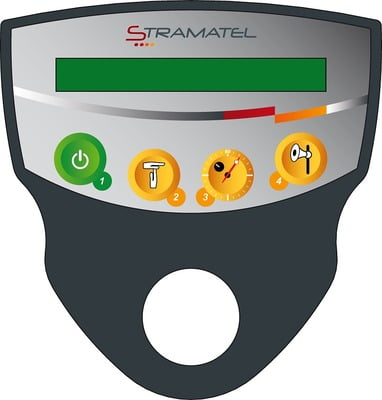

• 1 control panel, 1 timer panel
• 1 carry case for storing the panels
• 1 power cable
• Cable + socket for cable-powered models
• Assembly instructions and user guide

Make the score easier to read during competitions! The Stramatel "452 MB 7000" scoreboard comes ready to use and simply requires self-assembly or a technician.

Wireless or cable?
Wireless control makes installation easier and gives the user more freedom of movement. The new wireless system from Stramatel works on a standardised frequency in line with regulations, which guarantees a high level of reliability and functionality. Cable control is available as an option for all models and in certain cases it is recommended, particularly when the standard of play is high. Regardless of transmission type, it is possible to operate several display boards in the same hall at the same time.

Installation:
These display boards are quick and easy to install. The wireless display board requires a mains supply only (230 V). Whereas the cable models require a mains supply and installation of a control cable (included).

Stramatel "Multisport" Android APP – easy to use
Stramatel has developed an app for your display boards, which allows you to conveniently control the main functions of your wireless or cable-controlled display board via your smartphone or tablet. You can also share all of the match information during the game or after the final whistle on social media (Facebook, Twitter). The control panels are user-friendly, intuitive and fun. Simply download the "Stramatel Multisport" app for free from Google Play.
