Stramatel "452 MB 7120-2" Scoreboard
The Stramatel multi-sport scoreboard with 17 numbers in basketball mode. Includes 2 modules for displaying individual player fouls in basketball. The player numbers can be programmed from 1-99.

Can be set to 1 of 14 fully programmed sports using the control panel: badminton, basketball, boxing, ice hockey, indoor football / futsal, indoor handball, indoor hockey, in-line hockey, roller hockey, tennis, table tennis, floorball, volleyball as well as a free mode and timing/training mode.

Features the following functions:

• Display for home and away scores
• Display for game period, time-outs and who is serving
• Display for penalty times (handball)
• Game clock, counting up or down
• Freely adjustable with 4-digit minute and second display
• 24-hour clock, game clock can be switched to normal time in hours and minutes
• Automatic and manual buzzer
• Display for ball possession
• Programmable player numbers (1-99)

In addition to the main display, there are two modules – one to the left and one to the right – that display individual player fouls for basketball. The player numbers can be individually programmed from 1-99. Each module features 12 rows each with 5 yellow lights and 1 red light.

Display functions:

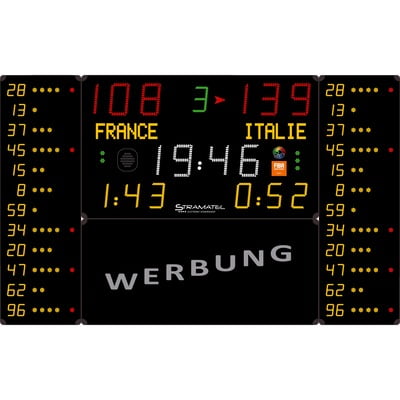

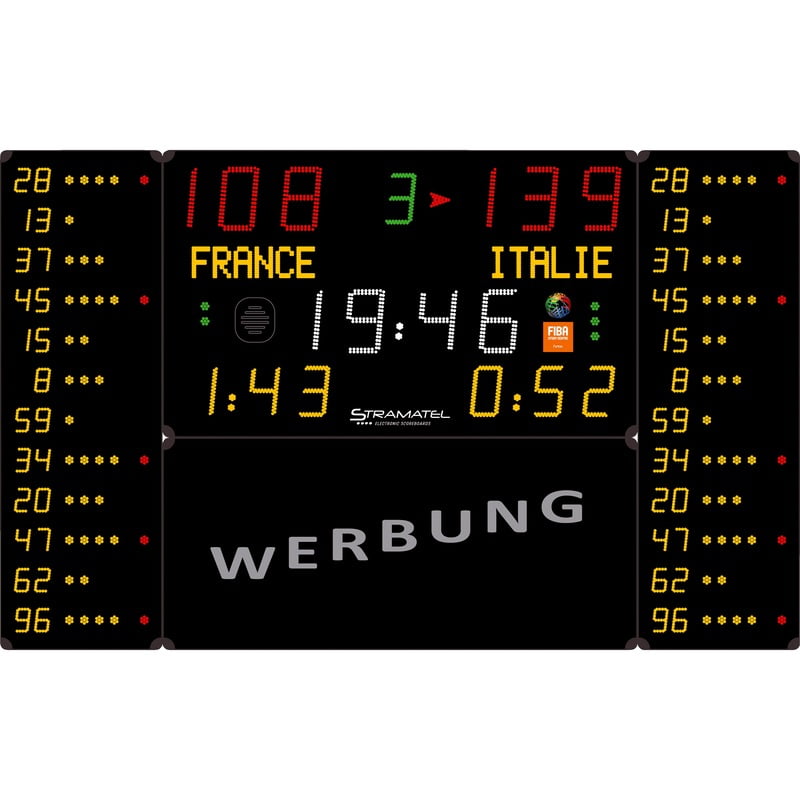

Main display

• Score: 2x 3 digits, red (25 cm)
• Game period: 1 digit, green (20 cm)
• Ball possession: 2 arrows, red
• Team names: 20 alphanumerical characters, yellow (12 cm)
• LED script: 1,000 characters
• Playing time / break time: 4 digits, white (25 cm) + 2 flashing lights
• Team foul / penalty timer: 2x 3 digits, yellow (20 cm)
• Time-outs or penalty times: 2x 3 green lights
• Time: outside of game use

Side displays

• Individual player fouls: 5 yellow lights + 1 red light, per player (12)
• Player numbers: 2 digits, yellow (9 cm), programmable for 12 players

More information:

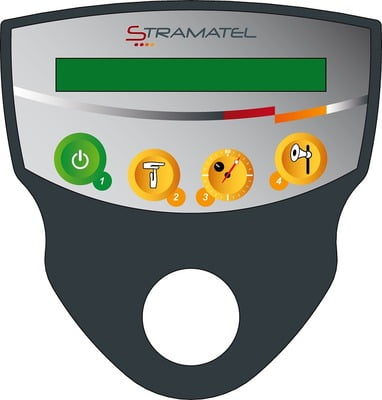

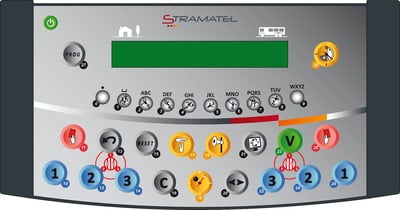

• Control panel and scoreboard linked via integrated radio control
• 5-language user interface (German, English, French, Spanish or Dutch)
• Built-in clock
• Memory function
• Reliable LED digital display
• Illuminated characters with ‘double safety’ LED segments
• Impact-resistant, anti-glare polycarbonate front
• 3-year guarantee on parts and working time
• LED display, guaranteed for 10 years on all parts
• Current: 230 V / 60 Hz

Includes:

• 1 scoreboard consisting of 4 modules
• 2 control panels, 1 timer panel
• 2 transport cases for storing the control panels
• 1 power cable
• Assembly and user instructions

Take the chance to make competitions in your sports hall visible to all! The radio-controlled Stramatel "452 MB 7120-2" scoreboard is supplied ready for use and can be simply assembled by yourself or by a specialist.

Cable- or radio-controlled:
Radio-controlled scoreboards are easier to install and give the user greater freedom of movement. The new radio-controlled system from Stramatel works at a standardised and correct radio frequency to guarantee a high level of reliability and functionality. All models are available as cable controlled. This option is recommended in some cases, particularly when the level of play is high. Regardless of transmission type, several scoreboards can work in one sports hall at the same time.

Installation:
The scoreboards are quick and easy to install. Radio-controlled scoreboards only require a mains supply (230 V). Cable-controlled models require a mains supply and the installation of a control cable, which is included.

The Stramatel "Multisport" Android app – easy to use
Stramatel has developed an app for your scoreboard, giving you convenient access to the main functions of your radio- or cable-controlled scoreboard via your smartphone or tablet. You can also share all of your match stats on social media (Facebook, Twitter) during the game or after the final whistle. The control panel is user-friendly, intuitive and fun. Simply download the free "Stramatel Multisport" app from Google Play.
