Stramatel "452 ME 800" display board

Multi-sport display board with 8 digits for 14 programmable sports.

• Dimensions (WxHxD): 100x64x9 cm
• Height of digits: 15 cm
• Visibility: 60 m
• Radio-operated (signal range: approx. 40 m) or cable-operated
• Buzzer with 116 dBa up to 1 m
• For indoor use
• Weight: 14 kg

14 fully programmed sports can be selected from the control panel: badminton, basketball, boxing, ice hockey, indoor football/futsal, indoor handball, indoor hockey, in-line hockey, roller hockey, tennis, table tennis, floorball, volleyball as well as free mode and timer/training.

The model offers the following functions:

• Displays home and away team score
• Clock showing playing time, can run forwards or count down
• Freely adjustable with 4-figure minute and second displays
• Automatic and manual buzzer

Display function:

• Score: 2x2 figure, red (15 cm)
• Playing time / break time: 4 figure, red (15 cm) + 2 flashing lights
• clock: outside of game use

Further information:

• Link between control panel and display board via integrated radio control
• 5 language program control (German, English, French, Spanish or Dutch)
• Saves information
• Reliable LED digital display
• Light-up digits with "extra secure" diode segments
• Ball-proof, anti-glare, polycarbonate front DIN 18032-3
• 3-year guarantee on parts and operating life for the whole product
• Guarantee on diode display: 10 years on all parts
• Supply: 230 V/60 Hz

Includes:

• Stramatel display board with built-in buzzer
• Control panel
• Carry case for control panel unit
• Power cable (5 m)
• Instruction manual

Make the score easier to read during competitions! The Stramatel "452 MS 7000" display board is delivered ready to use and simply requires self-assembly or a technician.

Wireless or cable?
Wireless control makes installation easier and gives the user more freedom of movement. The new wireless system from Stramatel works on a standardised frequency in line with regulations, which guarantees a high level of reliability and functionality. Cable control is available as an option for all models and in certain cases it is recommended, particularly when standard of play is high. Regardless of transmission type, it is possible to operate several display boards in the same hall at the same time.

Installation:
These display boards are quick and easy to install. The wireless display board requires a mains supply only (230 V). Whereas the cable models require a mains supply and installation of a control cable (included).

Stramatel "Multisport" Android APP – easy to use
Stramatel has developed an app for your display boards, which allows you to conveniently control the main functions of your wireless or cable-controlled display board via your smartphone or tablet. You can also share all of the match information during the game or after the final whistle on social media (Facebook, Twitter). The control panels are user-friendly, intuitive and fun. Simply download the "Stramatel Multisport" app for free from Google Play.

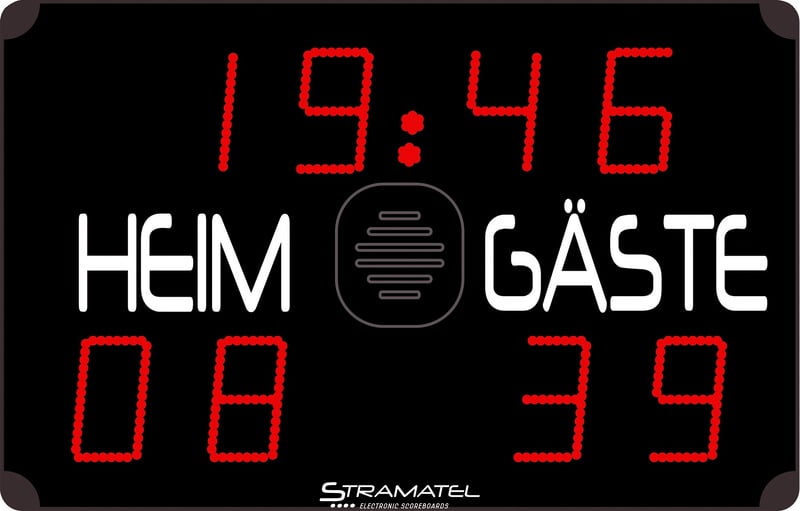

The display board pictured is wireless.
