The Stramatel multi-sport scoreboard with 13 numbers in handball mode. Includes 1 module for displaying penalty times and player numbers per team.

• WxHxD: 190x160x9 cm
• Character height: 25 and 20 cm
• Visible from 110 m
• Radio-controlled, range approx. 40 m
• Buzzer: 116 dBa in a radius of 1 m
• Built-in clock
• For indoor use
• Weight: 49 kg

Can be set to 1 of 14 fully programmed sports using the control panel: badminton, basketball, boxing, ice hockey, indoor football / futsal, indoor handball, indoor hockey, in-line hockey, roller hockey, tennis, table tennis, floorball, volleyball as well as a free mode and timing/training mode.

Functions:

• Displays home and away scores
• Displays game period, time-outs, who is serving and the set
• Displays team fouls in basketball
• Displays penalty times and player numbers (handball)
• Game clock, counting up or down
• Freely adjustable with 4-digit minute and second display
• 24-hour clock, game clock can be switched to normal time in hours and minutes
• Automatic and manual buzzer
• Display for ball possession

In addition to the main display, there is an additional module for displaying penalty times and player numbers in handball. The player numbers can be individually programmed. The module features 12 red digits for displaying the penalty times and 8 yellow digits for displaying the player numbers.

Display functions:

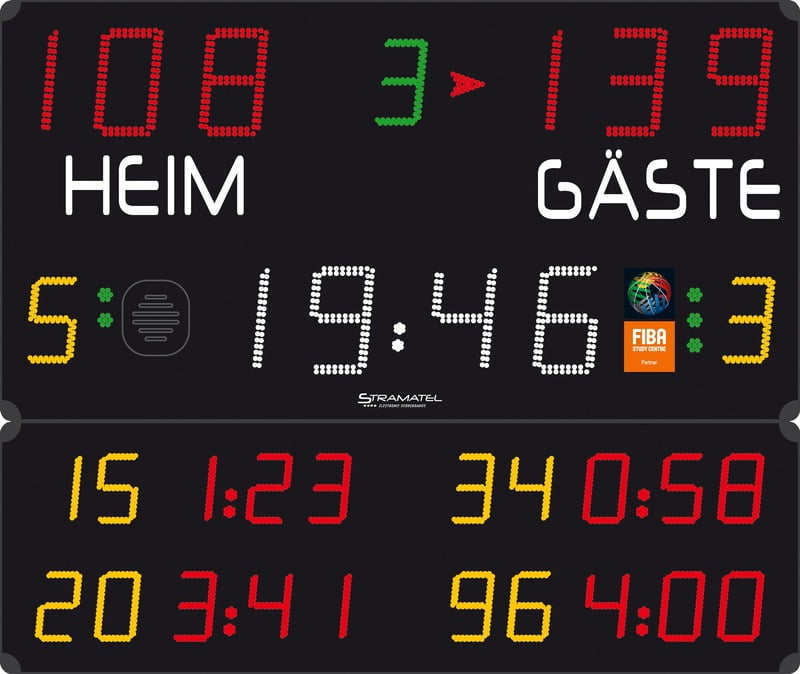

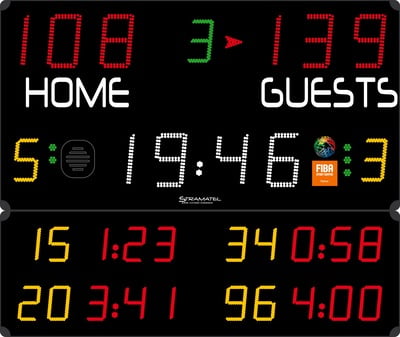

Main display

• Score: 2x 3 digits, red (25 cm)
• Game period: 1 digit, green (20 cm)
• Ball possession: 2 arrows, red
• Playing time / break time: 4 digits, white (25 cm) + 2 flashing lights
• Team fouls / set: 2x 1 digit, yellow (20 cm)
• Time-outs or penalty times: 2x 3 green lights
• Time: outside of game use

Lower display

• Penalty/time-out times or set result for the away team: 4x 3 digits, red (16 cm) + flashing lights
• Penalised player numbers or set result for the home team: 4x 2 digits, yellow (16 cm)

More information:

• Control panel and scoreboard linked via integrated radio control
• 5-language user interface (German, English, French, Spanish or Dutch)
• Built-in clock
• Memory function
• Reliable LED digital display
• Illuminated characters with ‘double safety’ LED segments
• Impact-resistant, anti-glare polycarbonate front DIN 18032-3
• 3-year guarantee on parts and working time for the entire device
• LED display, guaranteed for 10 years on all parts
• Current: 230 V / 60 Hz

Includes:

• 1 scoreboard consisting of 2 modules

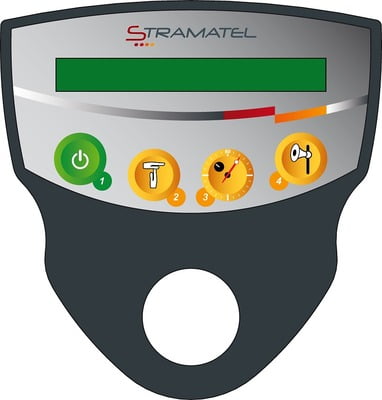

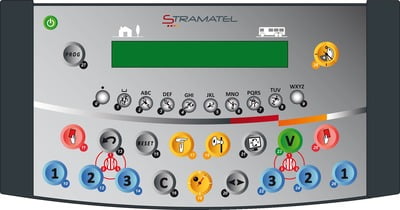

• 1 control panel, 1 timer panel
• 1 transport case for storing the control panels
• 1 power cable
• Cable + sockets for cable-operated version
• Assembly and user instructions

Take the chance to make competitions in your sports hall visible to all! The radio-controlled Stramatel “452 MB 3003 HB2” scoreboard is supplied ready for use and can be simply assembled by yourself or by a specialist.

Radio- or cable-controlled:
Radio-controlled scoreboards are easier to install and give the user greater freedom of movement. The new radio-controlled system from Stramatel works at a standardised and correct radio frequency to guarantee a high level of reliability and functionality. All models are available as cable-controlled. This option is recommended in some cases, particularly when the level of play is high. Regardless of transmission type, several scoreboards can work in one sports hall at the same time.

Installation:
The scoreboards are quick and easy to install. Radio-controlled scoreboards only require a mains supply (230 V). Cable-controlled models require a mains supply and the installation of a control cable, which is included.

The Stramatel "Multisport" Android app – easy to use
Stramatel has developed an app for your scoreboard, giving you convenient access to the main functions of your radio- or cable-controlled scoreboard via your smartphone or tablet. You can also share all of your match stats on social media (Facebook, Twitter) during the game or after the final whistle. The control panel is user-friendly, intuitive and fun. Simply download the free "Stramatel Multisport" app from Google Play.
