The Stramatel “CJM” judo scoreboard

The “CJM” scoreboard is a radio-controlled scoreboard for mid-level judo competitions.

• Size (WxHxD): 150x60x9 cm
• Digit height: 12 cm and 9 cm
• Visible at at an angle of: >160°
• Visible from up to 50 m
• Buzzer: 100-dBa in a 1-m radius
• For indoor use
• Weight: 17 kg

Functions:
The scoreboard program complies with International Judo Federation rules. You can enter the following information:

• Timer: ippon, waza-ari, yuko
• Osaekomi timer and side
• Golden score rule
• Penalties: hansoku-make, shido

The scoreboard can also display the weight category and breaks for medical examinations.

More information:

• Control panel and scoreboard connected by integrated radio control
• Can be set to a choice of 5 languages (German, English, French, Spanish or Dutch)
• Memory function
• Reliable LCD digital display
• Illuminated digits with ‘double safety’ LED segments
• Impact-resistant, anti-glare, polycarbonate front, complies with DIN 18032-3
• 3-year guarantee on all parts and working time for the entire device
• LED display, guaranteed for 10 years on all parts
• Power supply: 230 V / 60 Hz

Includes:

• Stramatel scoreboard with built-in buzzer
• 2 consoles with manual control panel for starting and stopping the chronometer
• 2 carry cases for console and manual control panel
• Power cable (12 m)
• User instructions

Wireless or cable?
Wireless control makes installation easier and gives the user more freedom of movement. The new wireless system from Stramatel works on a standardised frequency in line with regulations, which guarantees a high level of reliability and functionality. Cable control is available as an option for all models and in certain cases it is recommended, particularly when the standard of play is high. Regardless of transmission type, it is possible to operate several scoreboards in the same hall at the same time.

Installation:
These scoreboards are quick and easy to install. The wireless scoreboard requires a mains supply only (230 V). Whereas the cable models require a mains supply and installation of a control cable (included).

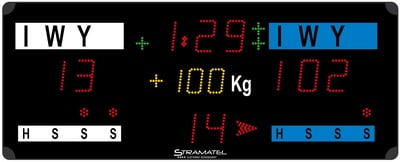

The scoreboard pictured is wireless. Also available with cable control on request.
