The Stramatel “RT Alpha” tennis scoreboard

The “RT Alpha” scoreboard is a radio-controlled scoreboard with programmable player names. Ideal for any indoor tennis court.

• Size (WxHxD): 240x70x9 cm
• Digit height: 16 cm and 12 cm
• Visible at at an angle of: >160°
• Visible from up to 60 m
• For indoor use
• Weight: 27 kg

Functions:
The Stramatel “RT Alpha” scoreboard complies with International Tennis Federation regulations. In addition to the score and the number of points, the scoreboard also displays who is serving using red LED arrows. The players’ names can also be entered into the console – 10 letters available for each name (letters are 12 cm tall).

Display function:

• Player names: 2x10 letters (12 cm)
• Moving text: first line: 1 notice containing 1,000 characters or 2 notices each containing 500 characters or 4 notices each containing 250 characters with option of animations (number of passes, order of the notices); second line: still text (10 characters)
• Score: 2x2 digits, red (16 cm) – 15-30-40-A
• Set result: first and second set – 1 digit, red (16 cm) for each player, 0-7; third set – 2 digits, red (16 cm) for each player
• Ball possession: 2 red arrows
• Manually control the brightness: 9 levels of brightness

More information:

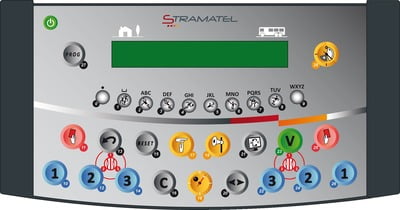

• Control panel and scoreboard connected by integrated radio control
• Can be set to a choice of 5 languages (German, English, French, Spanish or Dutch)
• Memory function
• Reliable LCD digital display
• Illuminated digits with ‘double safety’ LED segments
• Impact-resistant, anti-glare polycarbonate front, complies with DIN 18032-3
• 3-year guarantee on all parts and working time for the entire device
• LED display, guaranteed for 10 years on all parts
• Power supply: 230 V / 60 Hz

Includes:

• 1 Stramatel scoreboard
• 1 control panel
• 1 computer keyboard
• 1 carry case for control panel
• Power cable (5 m)
• User instructions

Grab the opportunity to display the score during your tennis matches! The “RT Alpha” scoreboard comes ready to use. All you need to do is install it yourself or have a professional do it for you.

Wireless or cable?
Wireless control makes installation easier and gives the user more freedom of movement. The new wireless system from Stramatel works on a standardised frequency in line with regulations, which guarantees a high level of reliability and functionality. Cable control is available as an option for all models and in certain cases it is recommended, particularly when the standard of play is high. Regardless of transmission type, it is possible to operate several scoreboards in the same hall at the same time.

Installation:
These scoreboards are quick and easy to install. The wireless scoreboard requires a mains supply only (230 V). Whereas the cable models require a mains supply and installation of a control cable (included).

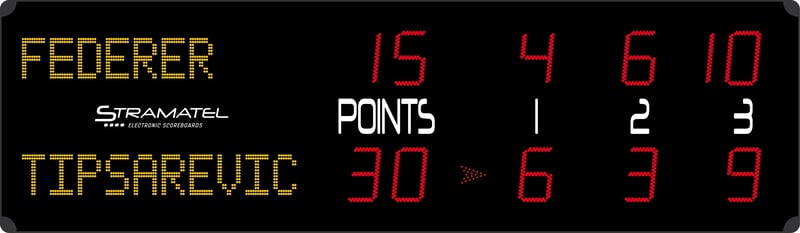

The scoreboard pictured is wireless. Also available with cable control on request.
